Spring roller blinds system MSRS25

25mm spring roller blinds system
Color:
Availability:
Quantity:

PDF Export

  • WB-MSRS25

  • Brittany

Quick View

Name

Sping roller blinds system

Model Number

WB-MSRS25

Pattern

Horizontal

Size

DIA:25mm

Material

PA66 PC POM Aluminium

Installation

top/wall/ceiling

MOQ

100pieces

Fabric Type

null

Use

School,Home,Hotel,Office ETC

Origin

Zhejiang,China(Mainland)

Care Instructions

Wipe Clean Only

Delivery time

0-10000sets:5-15days / over10000sets:to be negotiated

Certificate


Packaging Details

Carton box packed,wood pallet.



*The fabric should be shorter by half an inch(12.7mm) on both sides in order to accommodate the cordless mechanism.



Product Description

25mm Quality  spring roller blinds


NAME MODE RIM DIA SIZE RANGE MAX WEIGHT MODEL NUMBER
Roller blinds system Cordless/
semi-automatic
25mm Min width:400mm
Max width:1500mm
Max length:2500mm
2kg WB-MSRS25

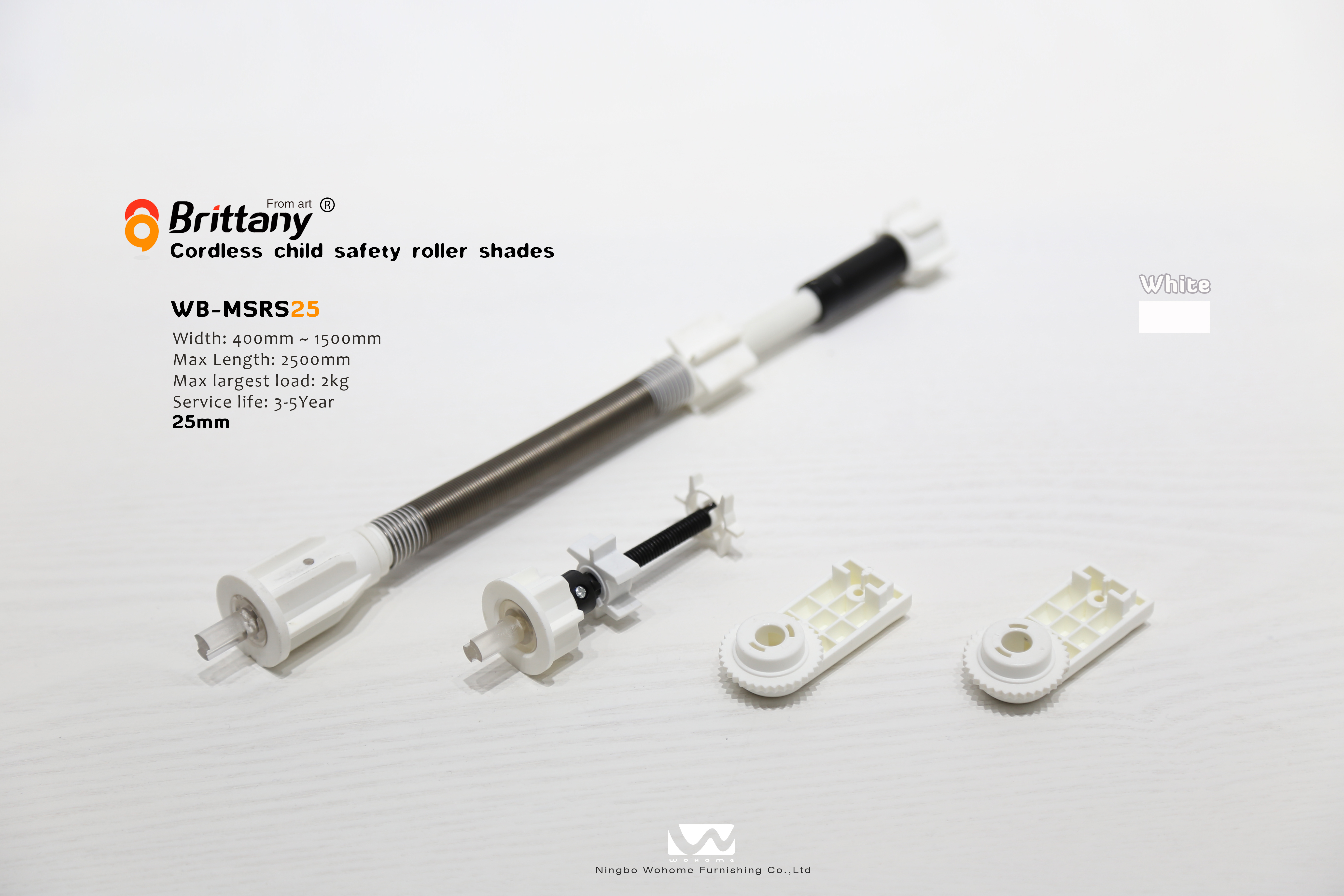

WB-MSRS25 1


Compared to traditional curtains,the advantage of the roller blind is that it can be retracted freely, filter the strong light radiation, transform the indoor light quality.

Roller blinds can have a dramatic effect in any room through the right combination of colour, texture and design.

Inside the window recess or across the front face, you can control natural light or create an instant blackout.


                                        ✓anti-static

                                        ✓fireproof waterproof

                                        ✓noise reduction

                                        ✓thermal insulation


面料特性2

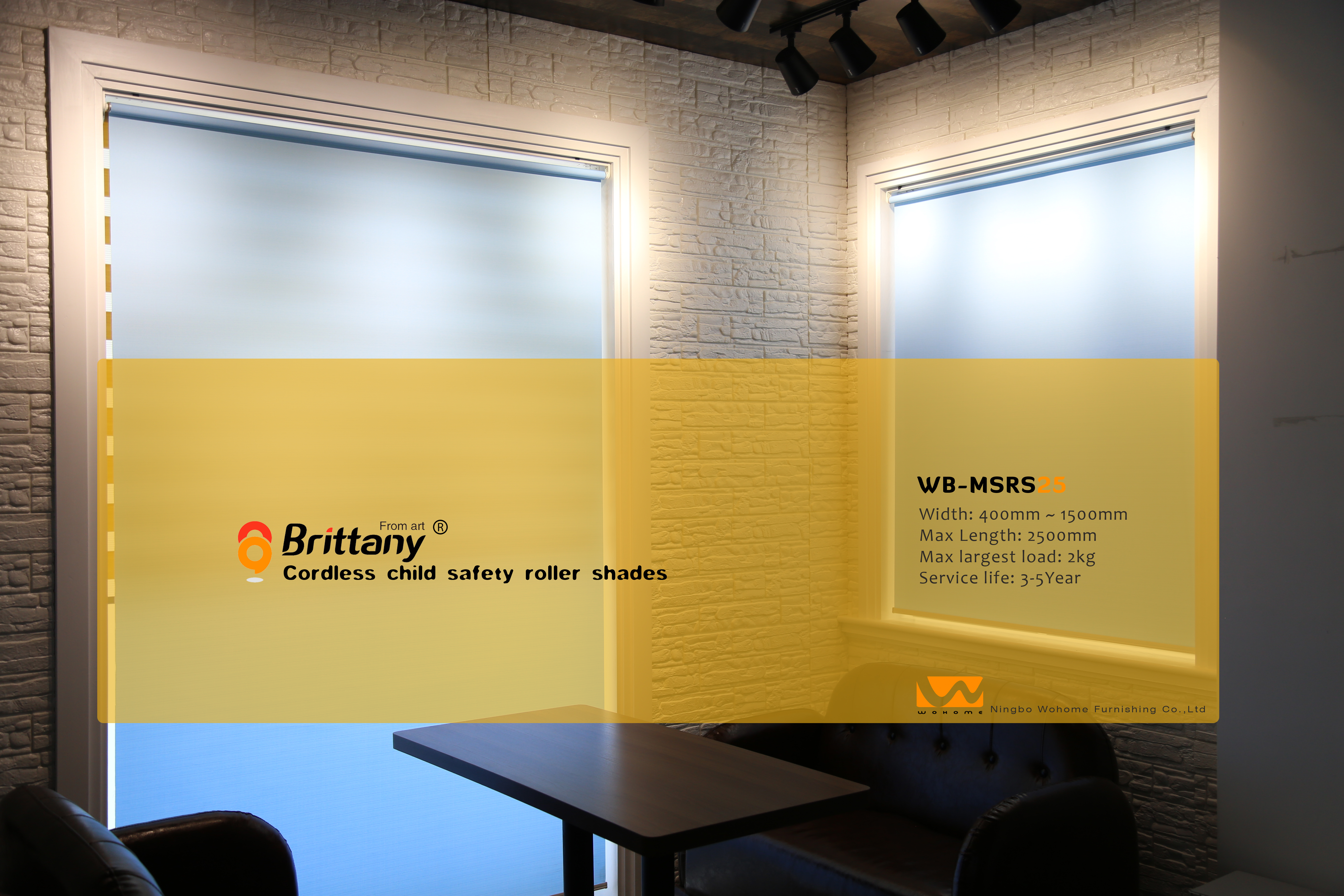

WB-MSRS25

IMG_1812BA00

Simple installation and convenient use.

Rollback smoothly,quietly.

Pull down to stop to any level height you want,second pulling will let it roll back automatically to the top.

Gears on both sides are used to adjust the twisting force of the spring and the reserved distance from the top of the blinds.

If the mounting height is too high,you can use the Push-pull stick(WB-RR) to help you using it,or equip an assisted pull rope on the bottom rail.The warranty lasts for 24 months.

Pls note:1,Do not let your children play with the bead chain lest the chain wind their bodies,which may hurt your children.2,Ensure there is at least one and a half circle fabric warpping on the roller tube when you pull the blinds down,otherwise you may not be able to do a extra pulling for resetting the blinds.If so,pls turn the left gear a clockwise circle.



Product details

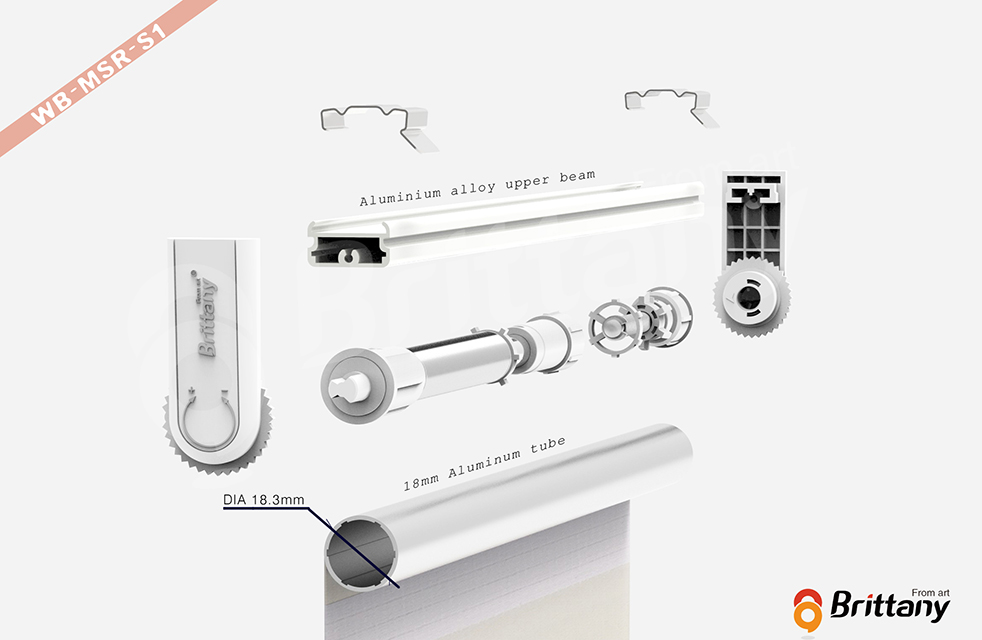

S101

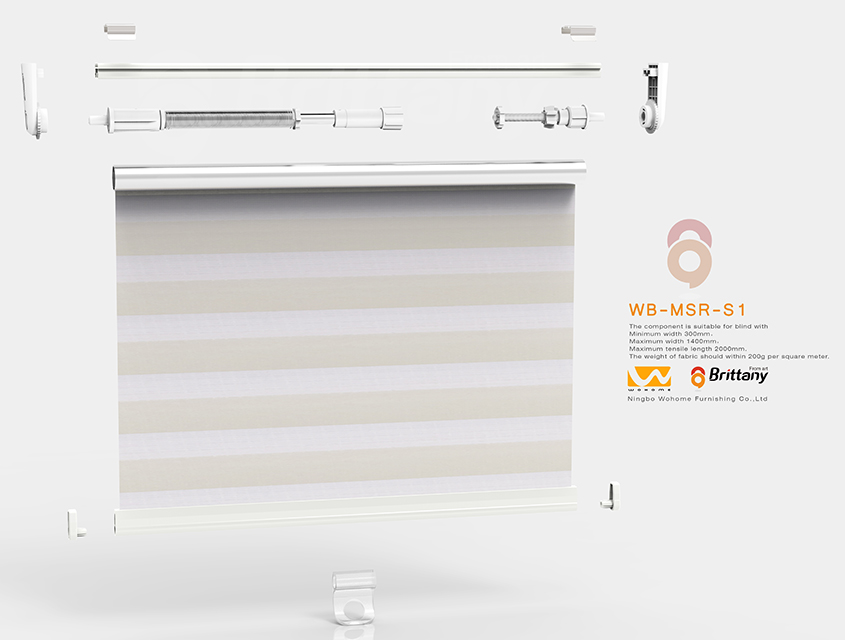

S1004

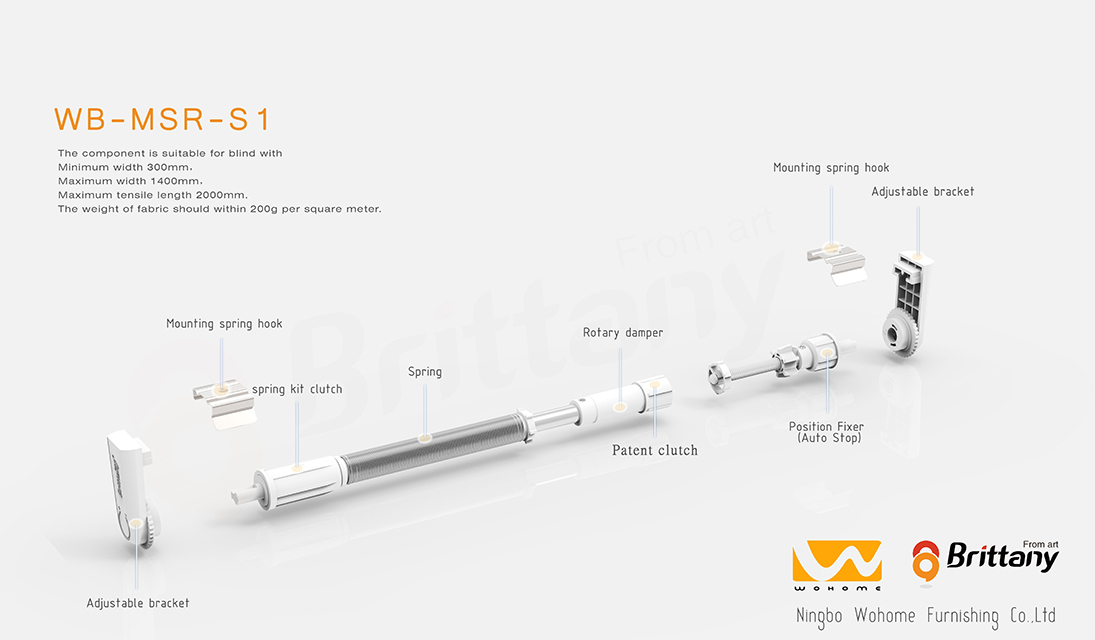

S100

WB-MSRS25 1








Measuring Method

微信截图_20190330085000

微信截图_20190330084903

微信截图_20190330084819

1,The fabric should be shorter by half an inch(12.7mm) on both sides in order to accommodate the cordless mechanism.

2.The depth of window should be 56mm at least to install inside.












About Brittany



24 Hours Online Service


20130813110459-1801926259

Contact&Consult Us


Tel:            +86-574-62560338-810

E-mail:       wohome@brittanyblinds.com

                  sunny@brittanyblinds.com

                  fan@brittanyblinds.com



Attentive Custom Service


timg (64)

Private custom services


1,OEM&ODM doable.

2,Select your personal size,colour,installation,material,luminousness ETC.

3,No MOQ,free sample.

4,Exclusive experienced account executive following up whole course.

Enjoy the private custom services that exclusively belong to you!


Production Management


timg (31)

Addressing the first requirement of every customer - Quality


Quality management includes customer-driven quality, top management leadership and commitment, continuous improvement, fast response, actions based on facts, employee participation and above all a quality management culture. Each part of the company is involved in total quality, operating as a customer or supplier to one another.





Stric Quality Test


500imagen2

Precise test of  performance

All components undergo stringent tests to ensure their own performance.

Each part of the products have been perfected many times, developing extraordinary products: low noise,high precision,accurate torque and long service life.


header-brandlabor-500

Ten thousands use tests

Every new product will go through cycling life tests which pull blinds over 10,000 times to ensure long term quality assurance and integrated use experience.



03_smart_factory_production_1

Long-term survey

We install our blinds in our office,workshop,warehouse and sample room and use them for years to survry and record the problems triggered by environmental factors, and study the aging rate of different blind systems.




Excellent after-sales service




Quality stabilization for two years,more than 10,000 times service life.



下载11 (1)



If it is the case of deficiency during the production process, a new product of the similarcategory will be exchanged to the defected one without any extra charge.






Packaging & Shipping

Delivery Details :

货运

1. Express

For the sample or the small order quantity from you, we adopt the air express courier.

2. Air shipment

We can adopt the bulk air shipment for the medium orders. If you have your own agent to collect the commodity at the local air port, this method may be suitable for you.

3. Sea shipment

If you place a larger order and the order is more than 3 cubic meters, we usually adopt the sea freight, it'll take a longer time to deliver the goods, may be 20- 30 days. We can send you documents which is required for the customs clearance in case of the different regulation of your country.


Packaging Details:


Standard export package, custom suffocating free.



Poly bag and carton box packed,Accessories will be packed by

small poly bag first, then strong carton box with wood pallet.



微信截图_20190329171534微信截图_20190329171458

微信截图_20190329163426timgffg (5)
纸箱包装


FAQ

Q:Are you manufacturer or trade company

A:We are a professional manufacturer of blinds&shades.

Q. Can I have a sample order for Roller Blinds/Shades?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q. What about the lead time?

A:Sample needs 1-6 days, mass production time is 5-30 days.

Q. Do you have any MOQ limit for Roller Blinds/Shades order?

A: Low MOQ, 1pc for sample checking is available.

Q. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.

Q. How to proceed an order for Blinds?

A: Firstly let us know your requirements or application.

    Secondly We quote according to your requirements or our suggestions.

    Thirdly customers confirm the samples and prepay deposit for formal order.

    Fourthly We arrange the production.

Q. How to change the roll speed of the blinds?

A: Rotate the gear disk on the left end of the spring system,it will adjust the torque of the spring so as to speed so as

to speed up or slow down the rollback speed.(speed up the rollback speed by rotate along the direction of +)

Q. How to change the stop height of the fabric?

A: Rotate the gear disk on the right end of the spring system,then you can make blinds stop as high as you want.(rise the stop height by rotate the gear along the direction of -)

Q. What if I pull dowm too much length that blinds can't rollback?

A: Pls rotate the gear disk on the left gear a clockwise circle and than do a extra pulling for resetting the blinds.

Q. Is it OK to put my logo on Blinds/Shades product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q: Do you offer guarantee for the products?

A: Yes, we offer 2 years warranty to our products.
