Spring Loaded Roller Blinds WB-MSR-S1

child safety roller blinds ,finished product with spring system ,cordless child safety with spring system ,child safety roller blinds with spring system

  • WB-MSR-S1
  • Brittany

18mm quality spring roller blinds


Spring roller blinds

Model Number









PA66 PC POM Aluminium





Fabric Type



School,Home,Hotel,Office ETC



Care Instructions

Wipe Clean Only

Delivery time

0-10000sets:5-15days / over10000sets:to be negotiated


Packaging Details

Poly bag and carton box packed,Accessories will be packed by small poly bag first, then strong carton box.

Quick  View

*The fabric should be shorter by half an inch(12.7mm) on both sides in order to accommodate the cordless mechanism.

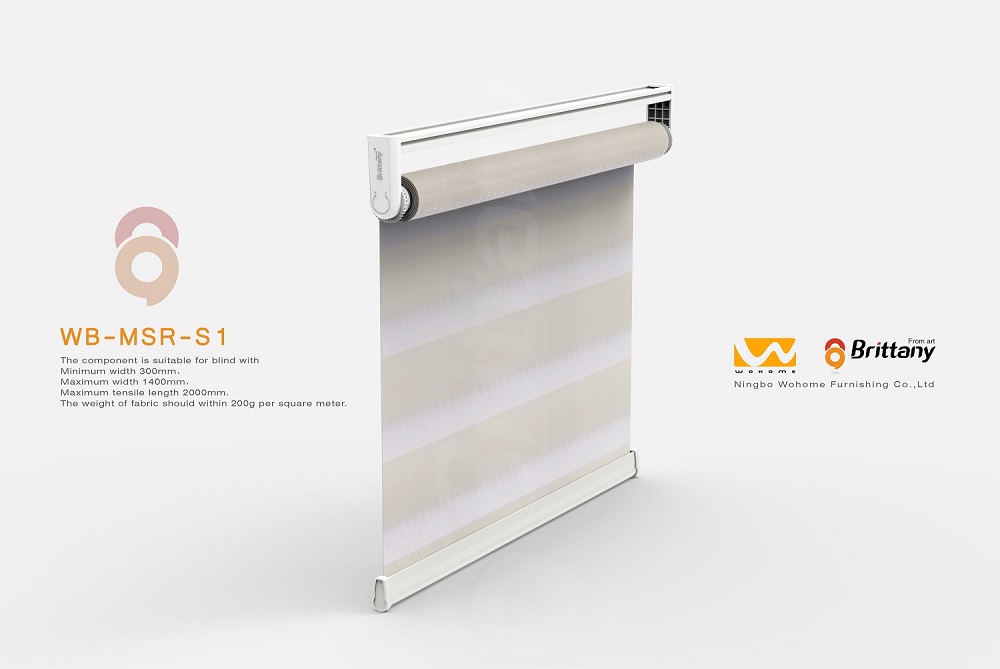

Product view

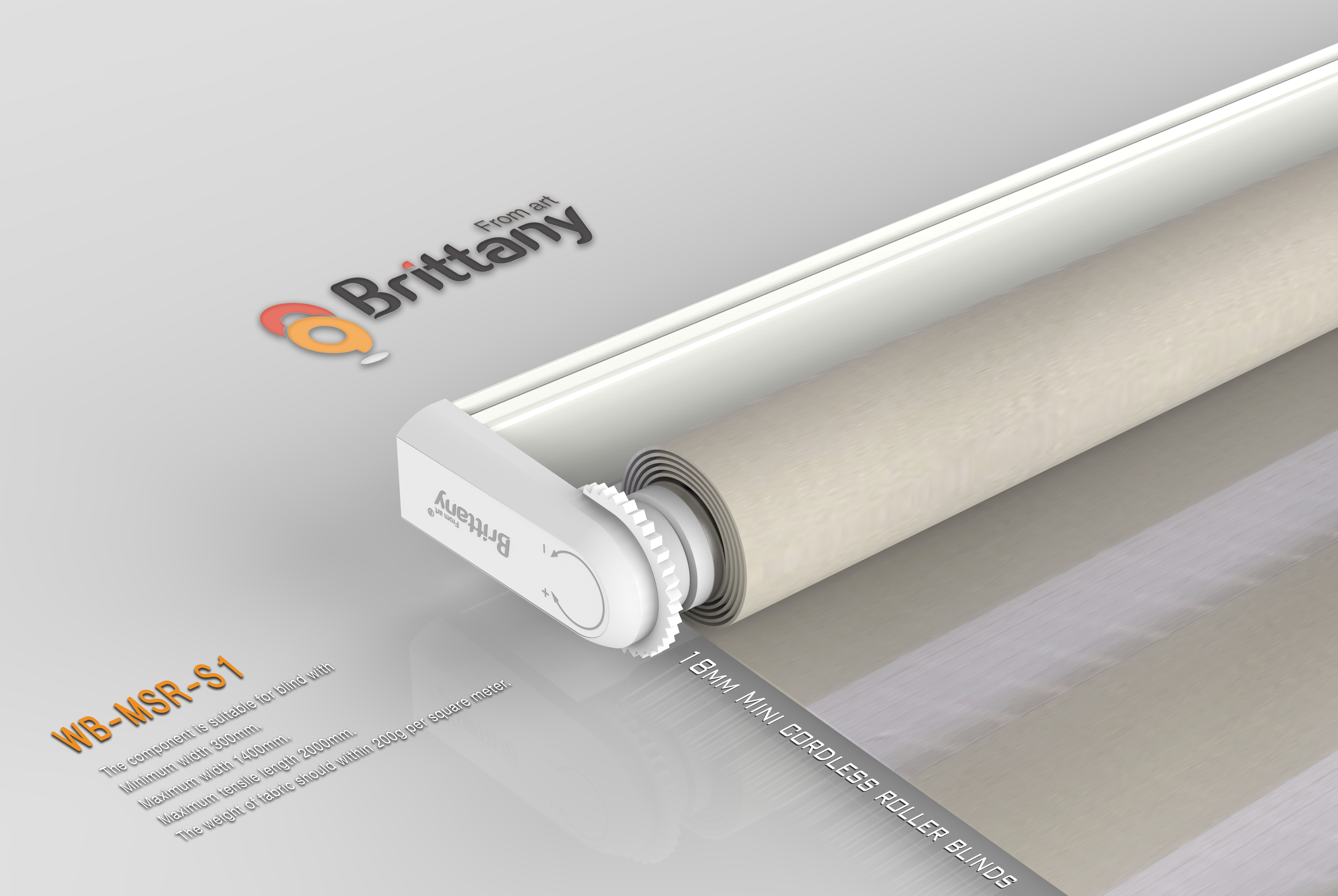

18mm Quality hook spring roller blinds







Roller blinds

Hook mounting


Min width:300mm
Max width:1400mm
Max length:2000mm




Compared to traditional curtains,the advantage of the roller blind is that it can be retracted freely, filter the strong light radiation, transform the indoor light quality.

Roller blinds can have a dramatic effect in any room through the right combination of colour, texture and design.

Inside the window recess or across the front face, you can control natural light or create an instant blackout.



                                        ✓fireproof waterproof

                                        ✓noise reduction

                                        ✓thermal insulation

Finished products show:


Easy to install,simply hook on the door/window when using.

Rollback smoothly,quietly.

Pull down to stop to any level height you want,second pulling will let it roll back automatically to the top.

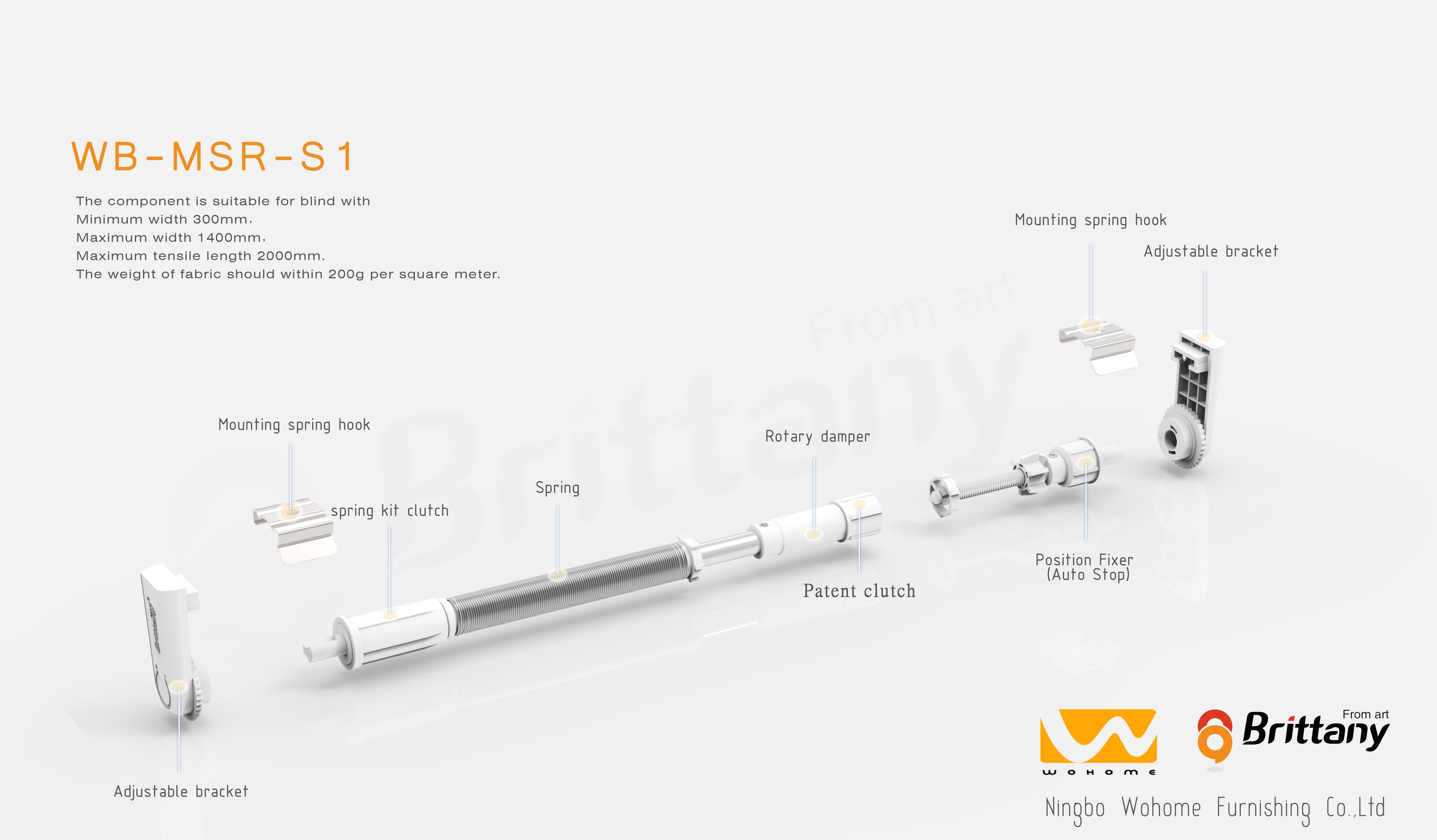

Gears on both sides are used to adjust the twisting force of the spring and the reserved distance from the top of the blinds.If the mounting height is too high,you can use the Push-pull stick(WB-RR) to help you using it,or equip an assisted pull rope on the bottom rail.The warranty lasts for 24 months.

Pls note:1,Do not let your children play with the bead chain lest the chain wind their bodies,which may hurt your children.2,Ensure there is at least one and a half circle fabric warpping on the roller tube when you pull the blinds down,otherwise you may not be able to do a extra pulling for resetting the blinds.If so,pls turn the left gear a clockwise circle.

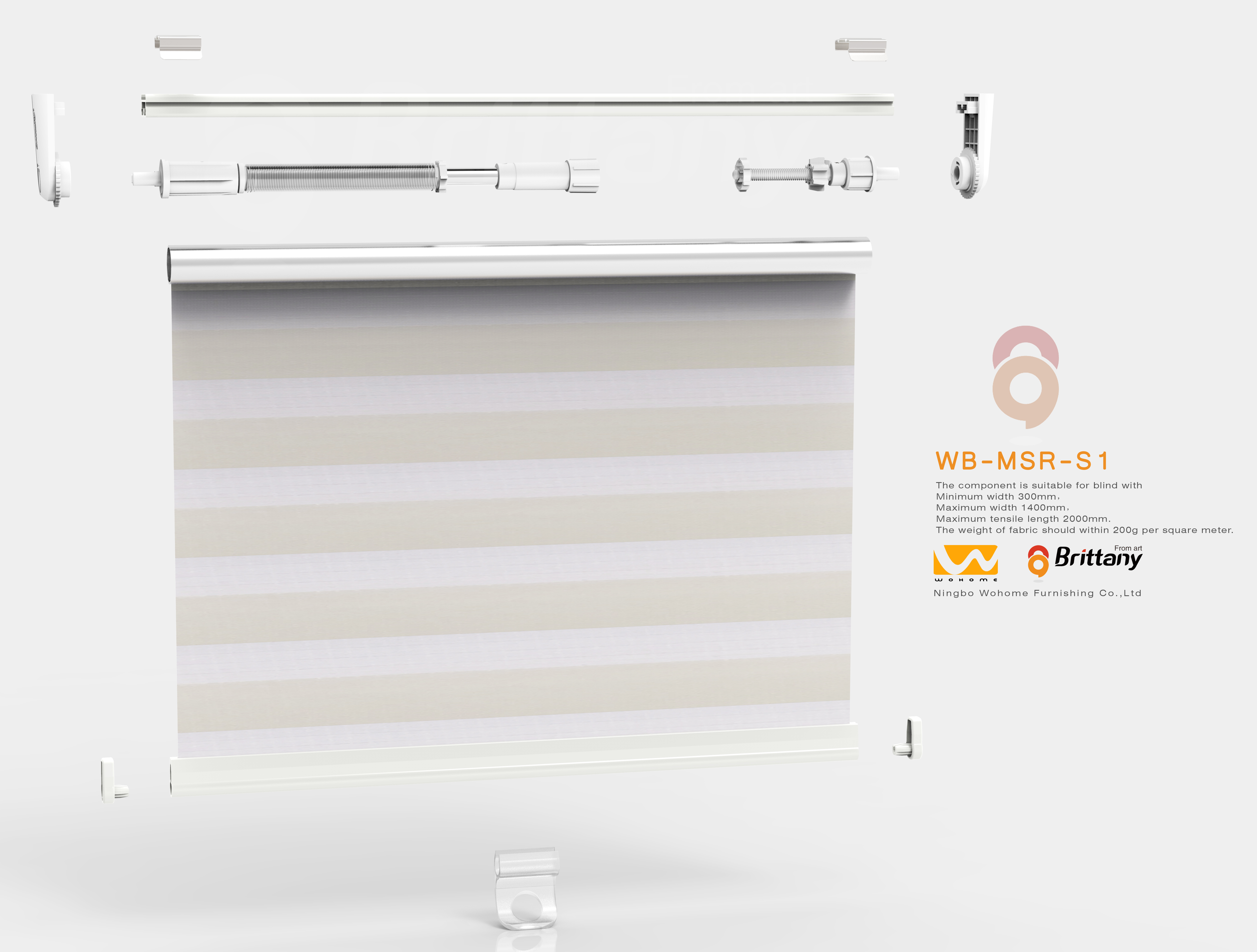

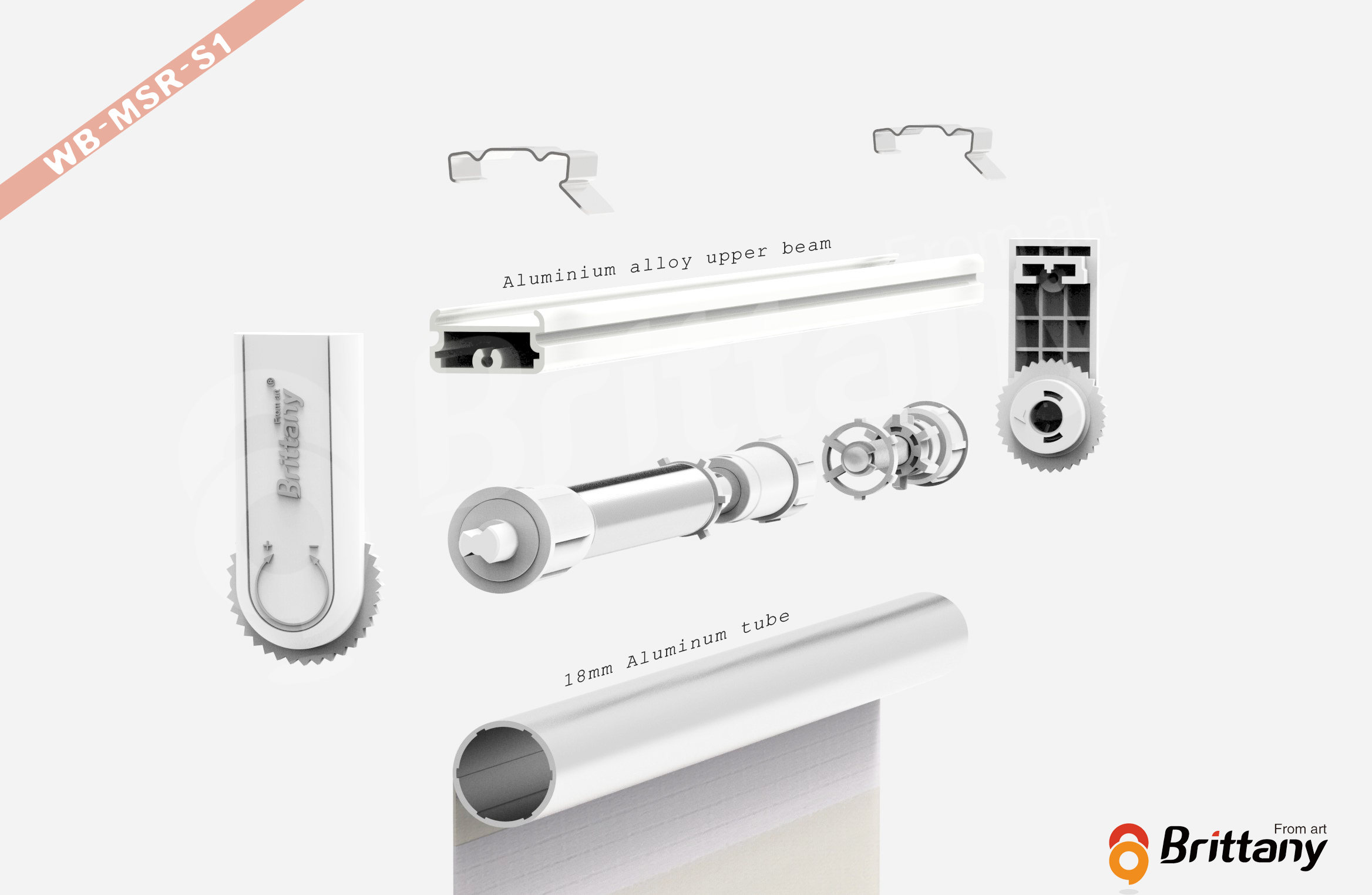

Product details

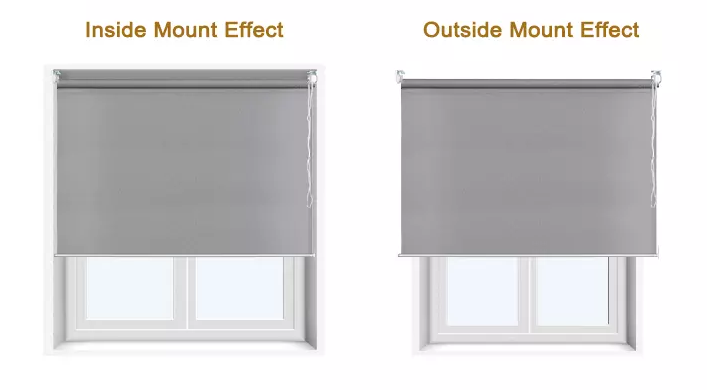

Fitting style

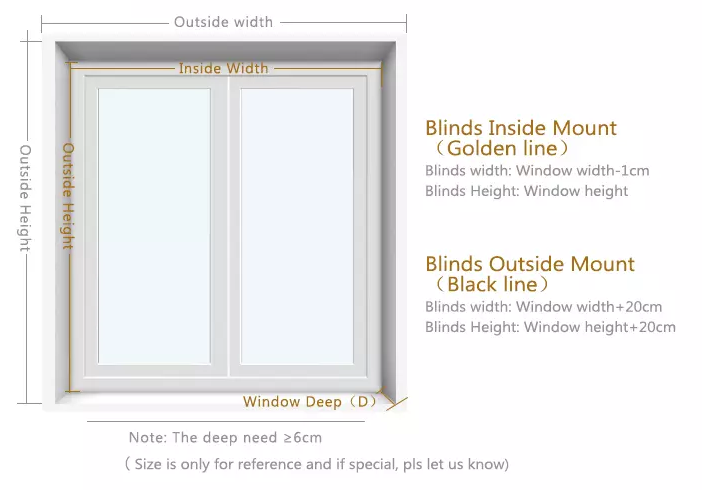

Measuring Method

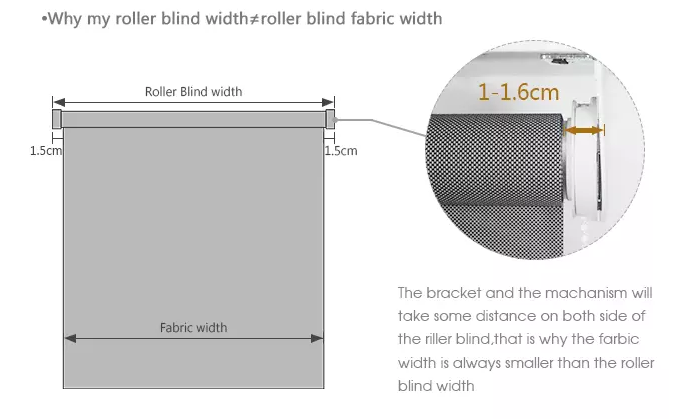

1,The fabric should be shorter by half an inch(12.7mm) on both sides in order to accommodate the cordless mechanism.

2.The depth of window should be 56MM at least to install inside.

24 Hours Online Service

Contact&Consult Us

Tel:            +86-574-62560338-810

E-mail:       wohome@brittanyblinds.com



Attentive Custom Service

Private custom services

1,OEM&ODM doable.

2,Select your personal size,colour,installation,material,luminousness ETC.

3,No MOQ,free sample.

4,Exclusive experienced account executive following up whole course.

Enjoy the private custom services that exclusively belong to you!

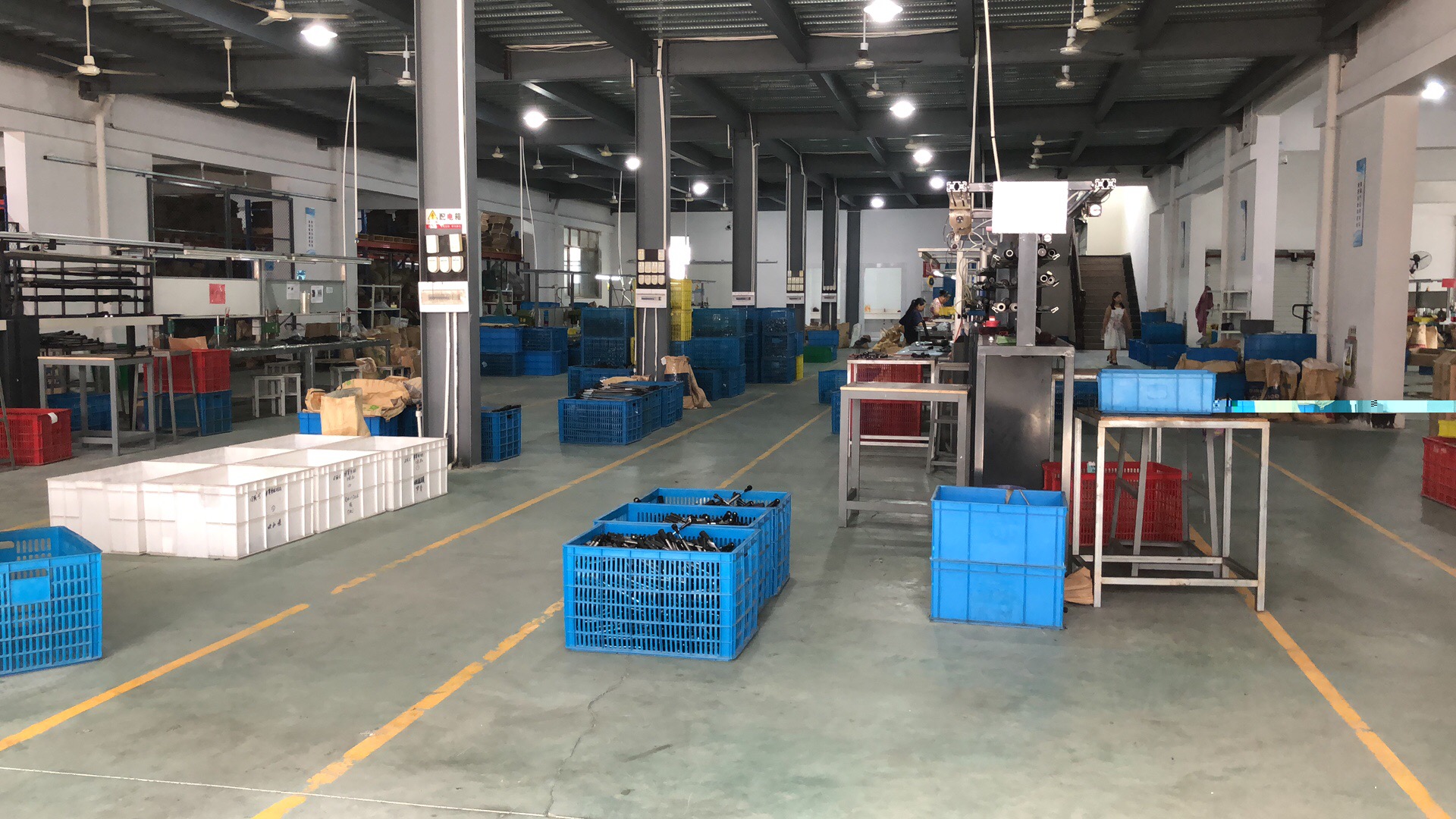

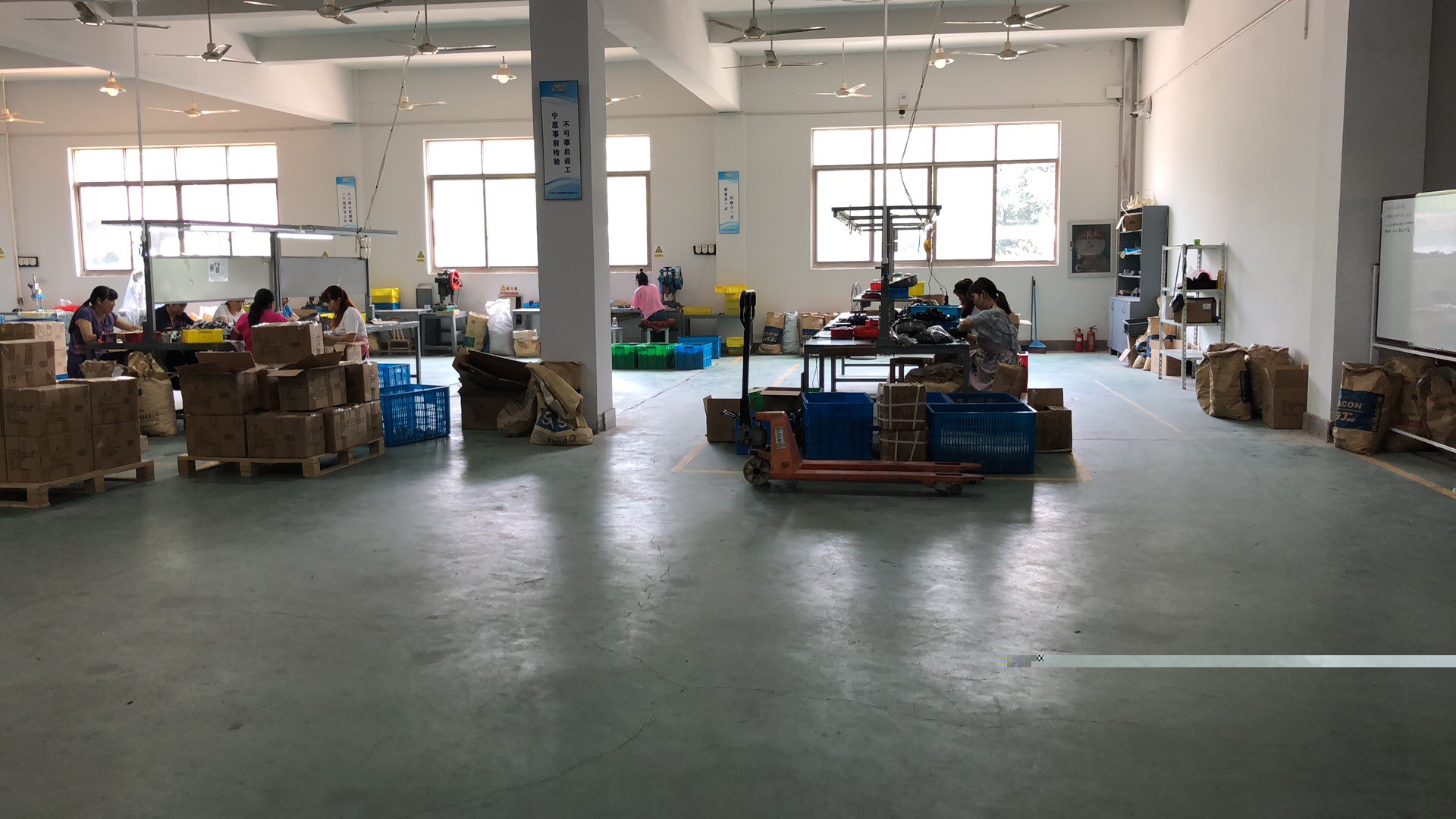

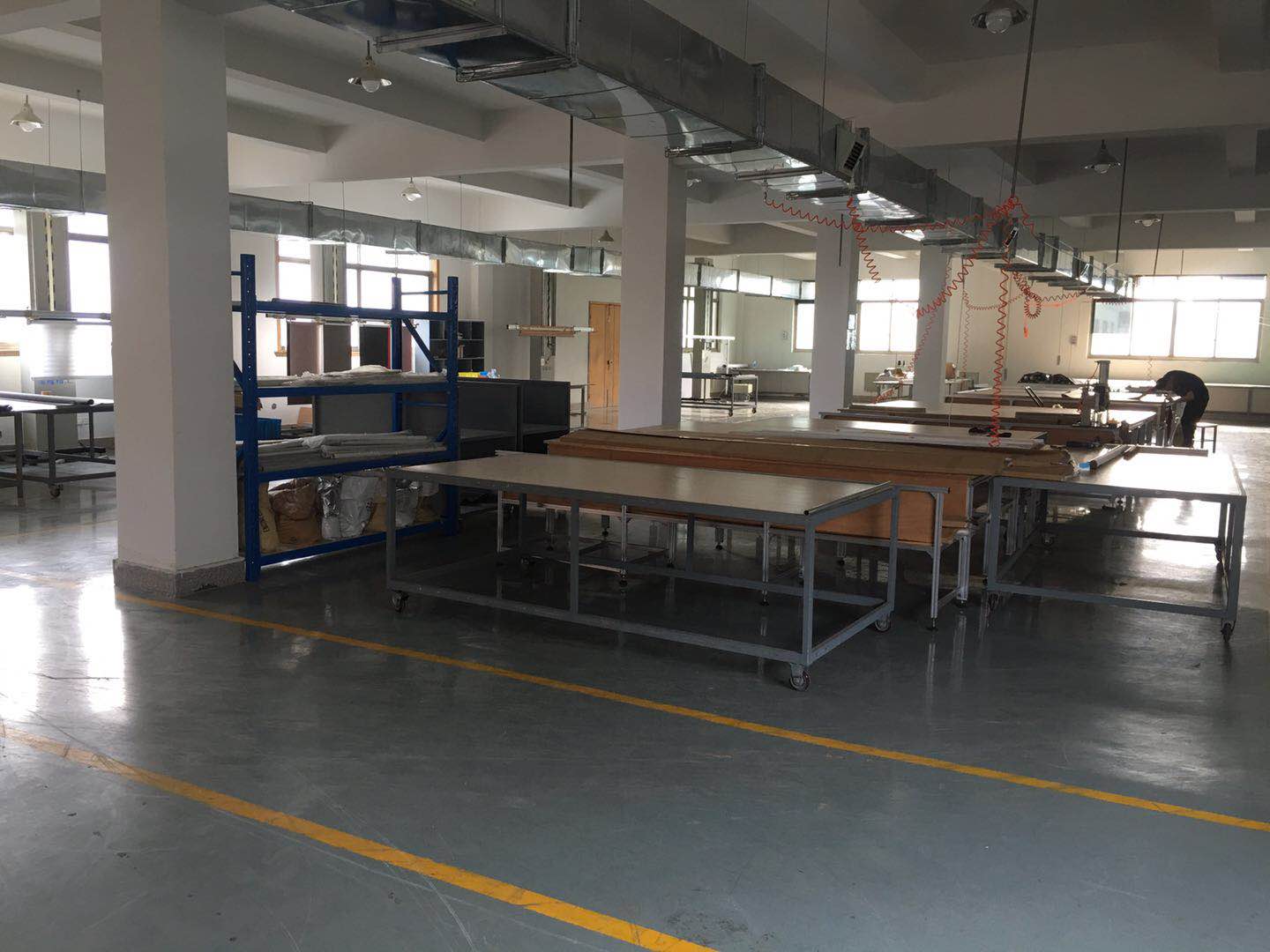

Production Management

Addressing the first requirement of every customer - Quality

Quality management includes customer-driven quality, top management leadership and commitment, continuous improvement, fast response, actions based on facts, employee participation and above all a quality management culture. Each part of the company is involved in total quality, operating as a customer or supplier to one another.

Strict Quality Test

Precise test of performance

All components undergo stringent tests to ensure their own performance.

Each part of the products have been perfected many times, developing extraordinary products: low noise,high precision,accurate torque and long service life.

Ten thousands use tests

Every new product will go through cycling life tests which pull blinds over 10,000 times to ensure long term quality assurance and integrated use experience.

Long-term survey

We install our blinds in our office,workshop,warehouse and sample room and use them for years to survry and record the problems triggered by environmental factors, and study the aging rate of different blind systems.

Excellent after-sales service

Quality stabilization for two years,more than 10,000 times service life.

If it is the case of deficiency during the production process, a new product of the similarcategory will be exchanged to the defected one without any extra charge.

Package and shipment

Delivery Details :

1. Express

For the sample or the small order quantity from you, we adopt the air express courier.

2. Air shipment

We can adopt the bulk air shipment for the medium orders. If you have your own agent to collect the commodity at the local air port, this method may be suitable for you.

3. Sea shipment

If you place a larger order and the order is more than 3 cubic meters, we usually adopt the sea freight, it'll take a longer time to deliver the goods, may be 20- 30 days. We can send you documents which is required for the customs clearance in case of the different regulation of your country.

Q:Are you manufacturer or trade company

A:We are a professional manufacturer of blinds&shades.

Q. Can I have a sample order for Roller Blinds/Shades?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q. What about the lead time?

A:Sample needs 1-6 days, mass production time is 5-30 days.

Q. Do you have any MOQ limit for Roller Blinds/Shades order?

A: Low MOQ, 1pc for sample checking is available.

Q. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.

Q. How to proceed an order for Blinds?

A: Firstly let us know your requirements or application.

    Secondly We quote according to your requirements or our suggestions.

    Thirdly customers confirm the samples and prepay deposit for formal order.

    Fourthly We arrange the production.

Q. How to change the roll speed of the blinds?

A: Rotate the gear disk on the left end of the spring system,it will adjust the torque of the spring so as to speed so as

to speed up or slow down the rollback speed.(speed up the rollback speed by rotate along the direction of +)

Q. How to change the stop height of the fabric?

A: Rotate the gear disk on the right end of the spring system,then you can make blinds stop as high as you want.(rise the stop height by rotate the gear along the direction of -)

Q. What if I pull dowm too much length that blinds can't rollback?

A: Pls rotate the gear disk on the left gear a clockwise circle and than do a extra pulling for resetting the blinds.

Q. Is it OK to put my logo on Blinds/Shades product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q: Do you offer guarantee for the products?

A: Yes, we offer 2 years warranty to our products.
